QI'E brand small 5-100TPD palm kernel extraction machine manufacturer

QI'E brand small 5-100TPD palm kernel extraction machine manufacturer
QI'E brand small 5-100TPD palm kernel extraction machine manufacturerQI'E brand small 5-100TPD palm kernel extraction machine manufacturerQI'E brand small 5-100TPD palm kernel extraction machine manufacturerQI'E brand small 5-100TPD palm kernel extraction machine manufacturerQI'E brand small 5-100TPD palm kernel extraction machine manufacturer
Categoriesoil press machine
AlbumView larger image
BrandGashili
Model5TPD-100TPD
namesmall palm kernel extraction machine
certificateISO,CE
capacity5TPD---500TPD
Mateial of palm oil linecarbon steel and stainless steel
Warranty1year
Functionpalm oil press machine
ndine value44-46gl/100g
Transparency500c
Acid valueless than 1.0mg koh/g
Key wordspalm oil milling machine
Unit PriceUS $ 150000 / set
FOB portQingdao, Shanghai, Ningbo, Guangzhou
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2017-11-25
Detail Information

QI'E brand small 5-100TPD  palm kernel extraction machine manufacturer

Product Description



Equipments which directly related to the palm fruit oil process are divided into six systems as follows:

1.Fruit reception system

1.1 Use truck to transport the ripe and fresh palm fruits from fruit ranch, weigh up them by platform scale  and record, and then pour them into the discharging table.

1.2 Start control valve to open the discharging table, then fruit drop in the fruit basket car freely.

1.3 Drag the fruit basket car which loaded with fresh palm fruits to the downward of the bridge crane by  power cable tray and cable tray, then use bridge crane to sling the fruit basket car to the track lead to  sterilizer  sterilizing tank.

2. Sterilizer system

2.1 After drag the fruit basket car into the sterilizer sterilizing tank, close the sterilizer sterilizing tank and  open the vent valve below it. Then inlet saturated vapor, close the vent valve after the cold air in the tank  was excluded generally, and enter into the period of steaming and sterilizing.

2.2 Close the inlet valve after the sterilizing process. Drain out the water and vapor in tank, then you can  open the door of the sterilizer sterilizing tank.

2.3 Drag the cooked fruit basket car to the downward of the beige crane.

3.Threshing system

3.1 Pour the sterilized fruit in the fruit basket car into the unloading equipment.

3.2 Feed the fruit regularly into the fruit-separating machine to separate.

3.3 After twisting and beating in the fruit-separating machine, the fruits will fall off entirely.

4. Pressing system

4.1 Palm fruit was transported to crasher by elevator.

4.2 Fruit was heated in crasher.

4.3 After sterilizing, the broken palm fruit flow into the palm oil press machine to pressing.

5. Fiber, cake, shell and kernel separation system

5.1 Fiber cake was dropped into packing auger, use interrupted blade to break up the palm cake, evaporate  the palm cake constantly during the transportation, and the enter into the fiber and core separation machine.

5.2 Open the discharging hole which is at the bottom of the core chafing bucket, then palm core drop into husking machine to husk.

5.3 Use shell kernel separator to separate the shell and kernel mixture after husking.

5.4 Kernel are charged into kernel-holding tank and shell are transported to boiler room to burn.

6.Clarification system

6.1 Use vibrated sifting filter to remove residues like fiber in the crude palm oil, then the oil enter into the  passivating tank.

6.2 There are indirect and direct steam in the passivating tank. After passivation, palm oil and water mixture are banished to the highorder position tank and then flow into the clarification tank.

6.3 Clarified oil flow into the oil tank, use disc separator to remove water in oil and then use plate heat exchanger to eliminate the residual water completely.

6.4 After vacuum drying, the oil flow into net oil tank and then feed into the final product oil tank

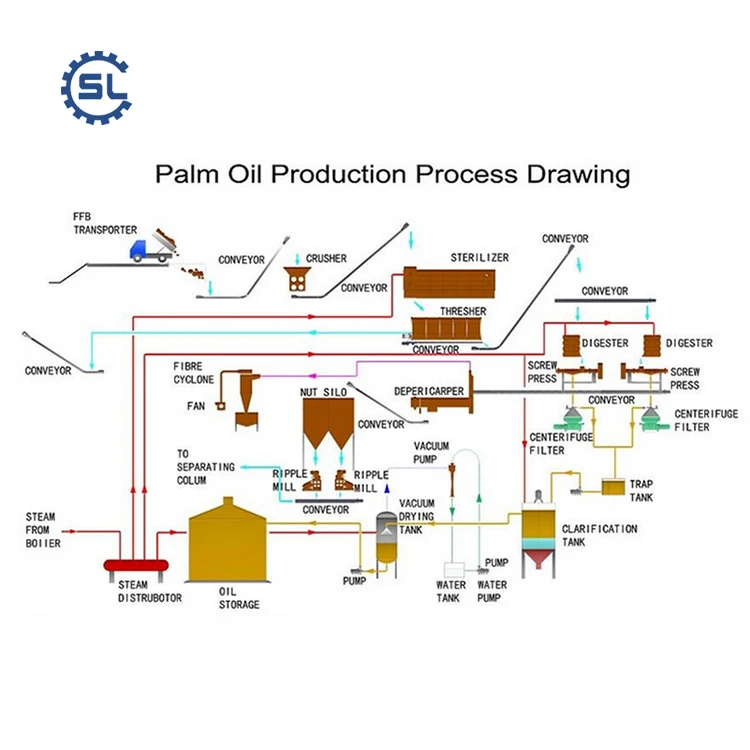

flow chart

  QI'E brand small 5-100TPD  palm kernel extraction machine manufacturer

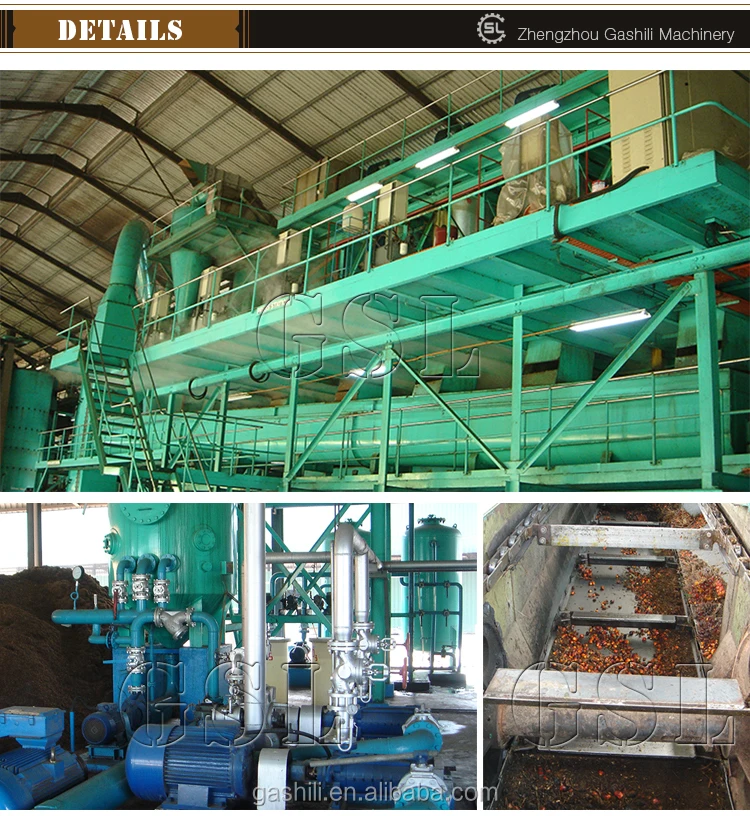

Detailed Images

  QI'E brand small 5-100TPD  palm kernel extraction machine manufacturer  QI'E brand small 5-100TPD  palm kernel extraction machine manufacturer

Advantages



More than 20 years including 10 years overseas market  experience of designing and installing

complete   palm kernel  oil extraction machine , we are now a leading company in   palm kernel  oil extraction machine  field.

We supply various  palm kernel  oil extraction machine and connected equipments.

1. more than 20 engineers provide design for customer

2. Have more than 100 engineers going abroad for machine installation and commissioning.

3. Our company is group company, have more than 150,000 m2 factory.

4. palm kernel  oil extraction machine  We have working site in Indonesia, if any customer want to see, can visit our customer workshop any time.

FAQ



Q1 : Which kind of materials can be processed?

All kinds of oil seeds. For example, sunflower seeds, rice bran, corn germ, palm fruit, palm kernel,coconut,peanut, soybean, sesame, cottonseeds, rapeseed, etc.



Q2 : What's the capacity?

Generally, 10-5000 tons per day. We can also manufacture as per customers' requirements.



Q3 : How long is the warranty?

The main parts of the machine come with one year warranty and after the expiration our engineer is available overseas to do the maintenance work.



Q4 : Can the machine be installed locally?

We can do the turn-key projects or other services according to customers'requirements,according to this condition,our services can be manufacturing,purchasing,transporting,installation,training labors etc.



Q5 : How to operate the machine?

Our engineers will be available to guide and train your labors how to operate and run the machine.
